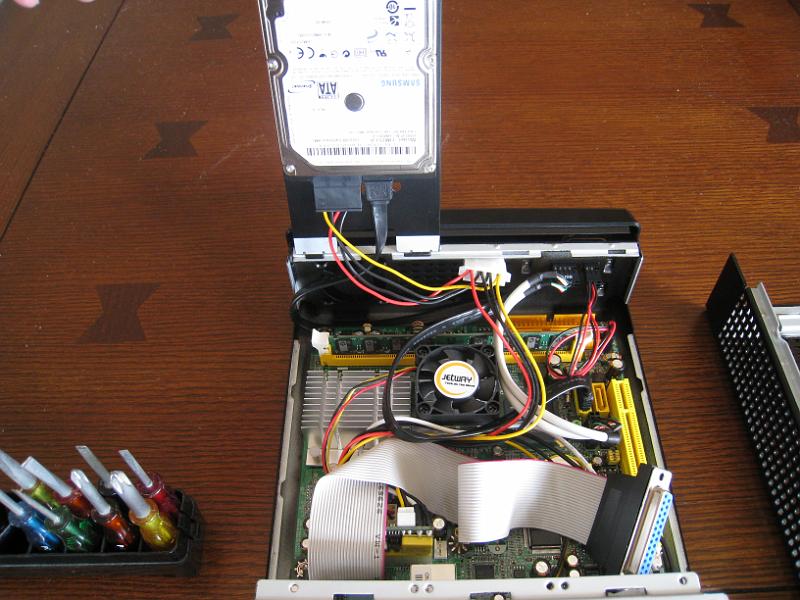

| Hood up. Note parallel port DB25 cable that plugs into motherboard header. The IRLP board interfaces to computer via the parallel port. The DC/DC power supply is partly visable just to the right of the parallel port header connection. The power supply is integrated in the connector to the motherboard's power supply input. It provides power for the motherboard, HD and IRLP board. | |
